Injection molding machine J180ADC-180U production and processing...

Six-axis robot M-10IA/12

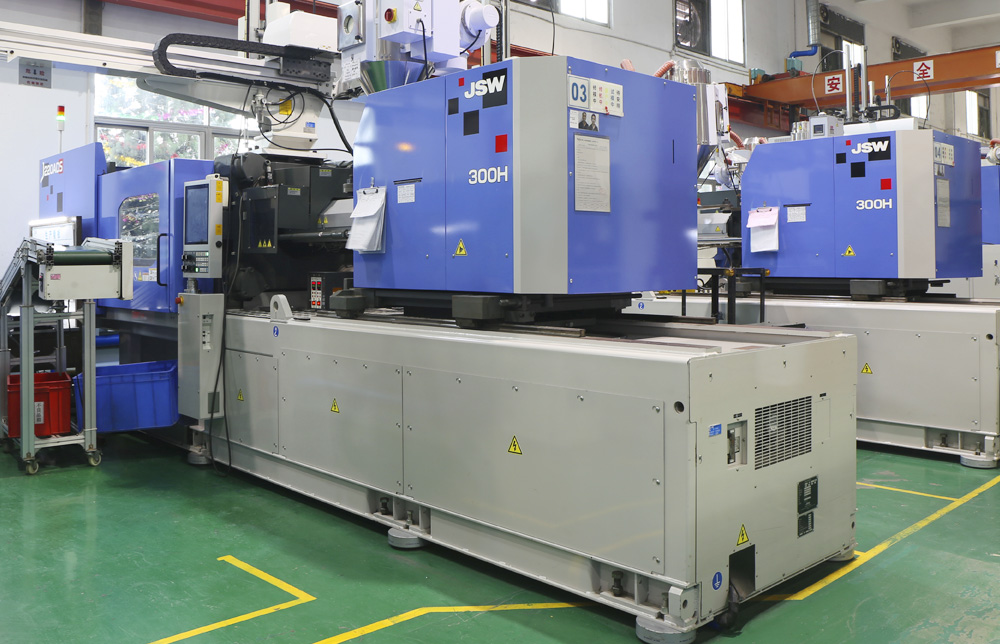

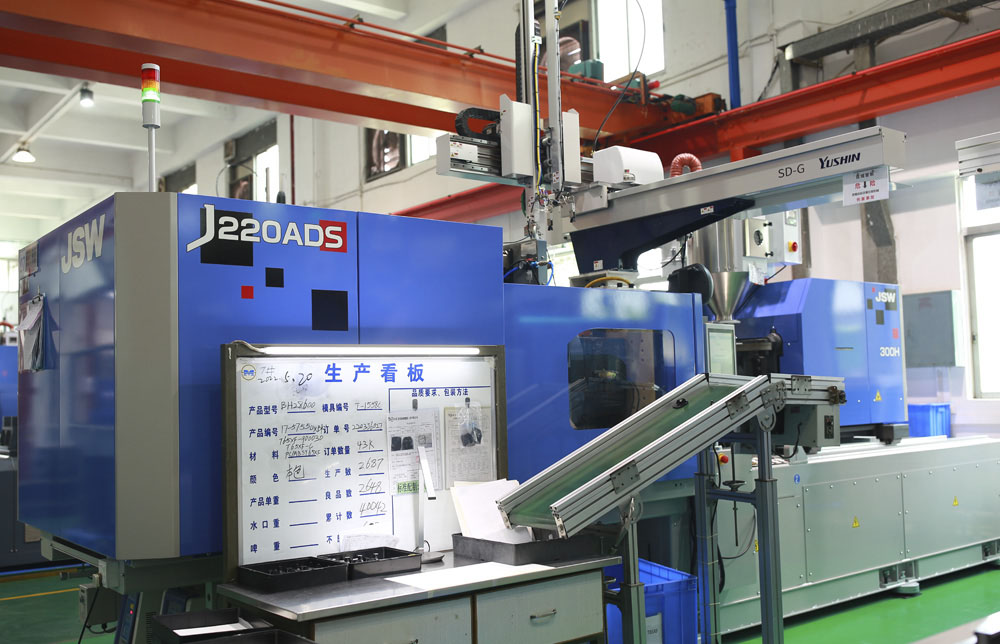

Injection molding machine J220ADS-300H

J220ADS-300H performance characteristics:

1. Faster cycle performance, faster drying cycle.
2. Significantly increase productivity, by increasing the platen speed by 20%.
3. The dry cycle time can be further shortened.
4. Improved ejector speed to reduce product removal time.
5. High-rigidity mold clamping device realizes high-precision and stable molding.
7. HAVC (high precision volume control) reverse sealing control.
8. IWCS (injection weight and buffer stability) control.
9. Clamping force feedback control; injection compression molding, foam molding control.

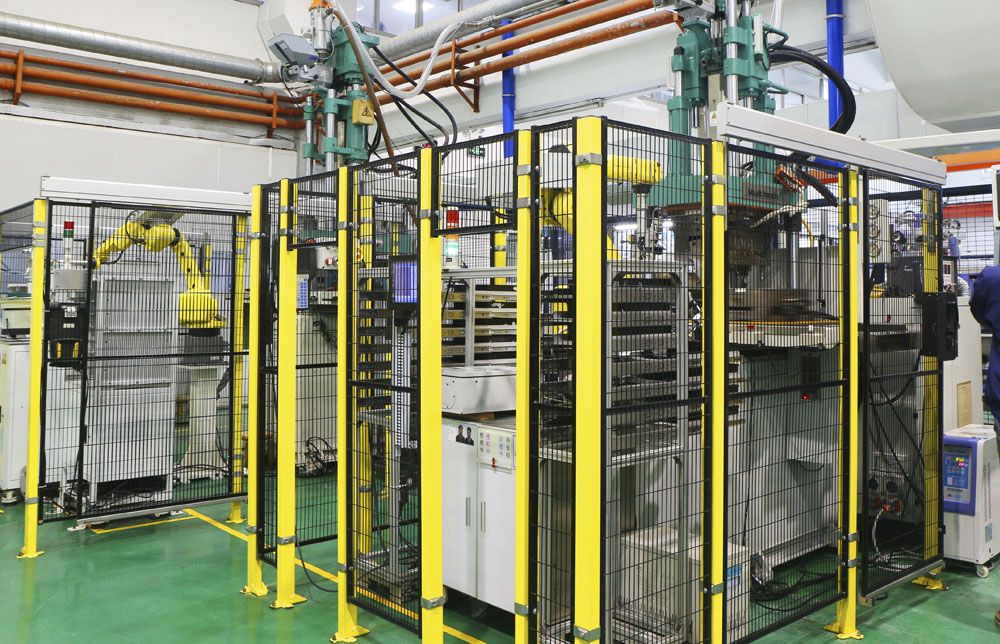

Six-axis Robot M-10IA/12

1. The upper template is equipped with two upper molds, and the disc is equipped with two lower molds. When forming, the disk is alternately rotated forward and reversed at 180 degrees.
2. Vertical mold clamping, plus a disc, and with two independent injection units (independent hydraulic oil circuit), the clamping force is from 50TON to 250TON, using full computer control, low and high hydraulic system.
3. The high-efficiency disc has a water jacket device in the middle, which can be used for cooling and transporting water for the lower mold.
4. It can expand the computer program and special multi-station disc (ie two upper molds, four lower molds) and cooperate with the automatic insertion and removal device on the other two lower molds.
5. Equipped with a FANUC handling robot, it is free and flexible to achieve fully automatic operation and increase production capacity.

Six-axis Robot U6-0809

1. The upper template is equipped with two upper molds, and the disc is equipped with two lower molds. When forming, the disk is alternately rotated forward and reversed at 180 degrees.
2. Vertical mold clamping, plus a disc, and with two independent injection units (independent hydraulic oil circuit), the clamping force is from 50TON to 250TON, using full computer control, low and high hydraulic system.
3. The high-efficiency disc has a water jacket device in the middle, which can be used for cooling and transporting water for the lower mold.
4. It can expand the computer program and special multi-station disc (ie two upper molds, four lower molds) and cooperate with the automatic insertion and removal device on the other two lower molds.
5. Equipped with a FANUC handling robot, it is free and flexible to achieve fully automatic operation and increase production capacity.

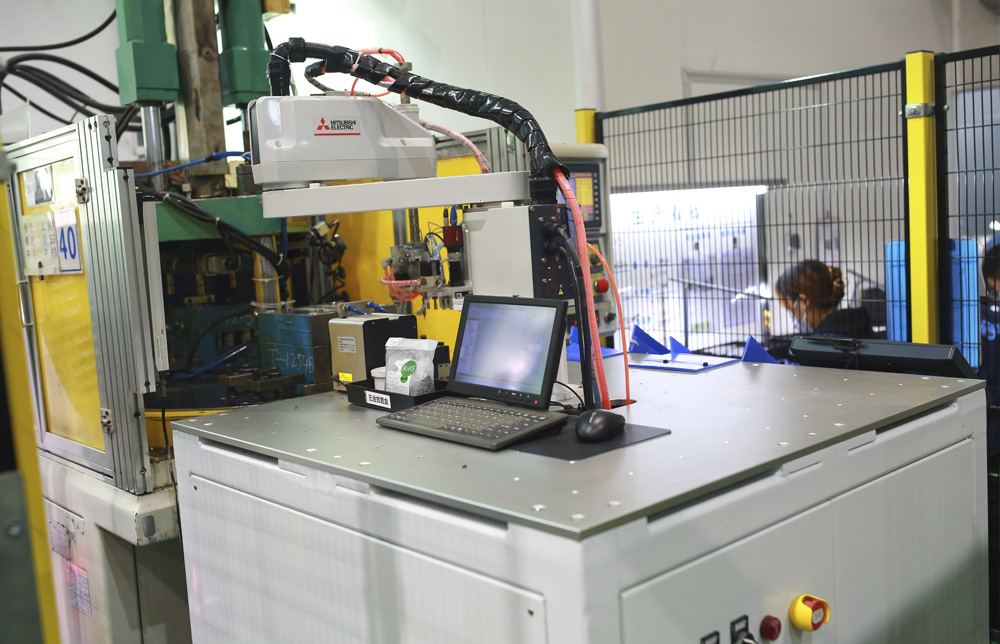

Four-axis Robot RH-6CRH7020-D

1. The disc rotates 180 degrees back and forth on the same horizontal plane, allowing the operator to pick up and place inserts on the fixed operating surface, which is convenient for work and high in production efficiency.
2. The positioning of the disc surface is locked with a fixed pin, which can ensure high-precision positioning after the rotation of the disc is stopped, so that the upper and lower molds can be clamped more accurately.

3. Automatic devices such as automatic insertion and removal can be installed to achieve fully automatic operation of the whole machine.

4. Equipped with intelligent mechanical equipment to achieve automatic generation to meet customer mass production needs.

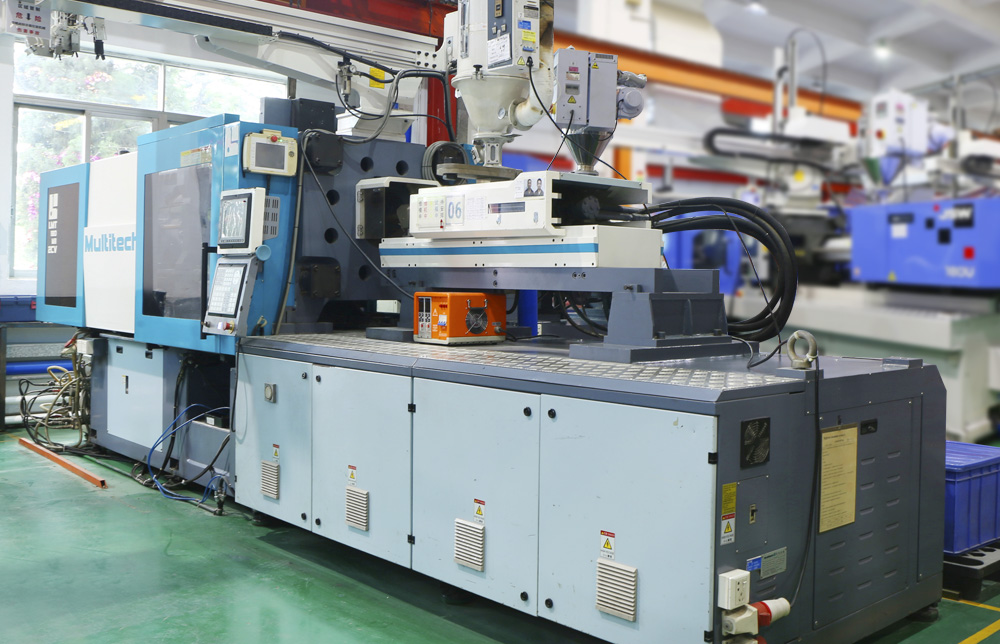

Two-color Injection Molding Machine

◆It has the functions of six-stage injection, three-stage pressure holding, two-stage release and pressure holding position switching control.
◆It can be flexibly adjusted according to the needs of the product, and the precise injection end point and the pressure-holding and pressure-holding position switching can achieve high-precision and high-stability injection performance.
◆Injection adopts linear electronic ruler with an accuracy of 0.01mm, which can accurately control the injection stroke, and can record and display the sampling temperature curve of the continuous production process and the injection end point at the same time.
◆Pressure-holding switching point, pressure-holding completion point curve, and a historical curve comparison function, the accuracy is up to 0.1mm, and the system stability is clear at a glance.
◆Six-stage PID temperature control, the accuracy can reach ±1? , and has the function of abnormal temperature disconnection alarm and upper and lower limit setting functions, which can accurately control the material temperature.
◆Adjustable timing preheat function, real-time heat preservation and automatic heating function of material pipe, automatic material washing function.

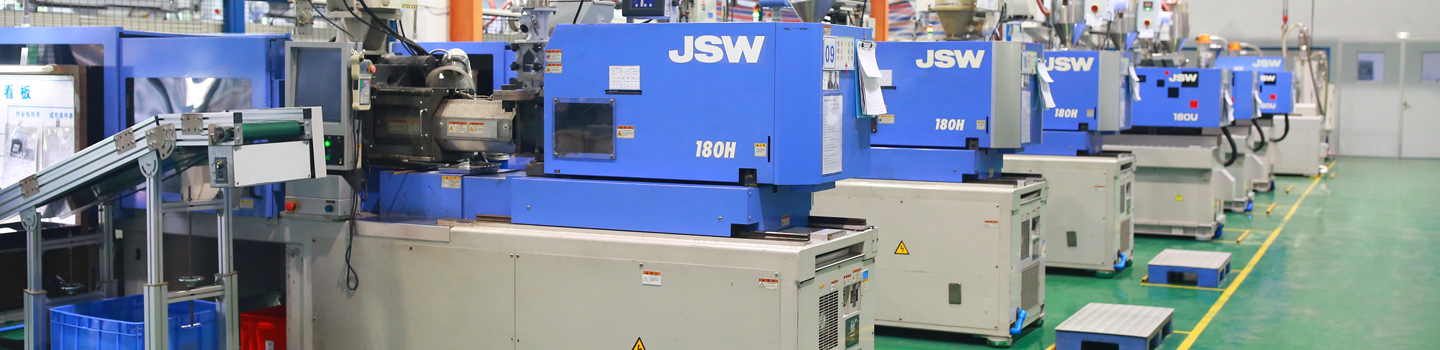

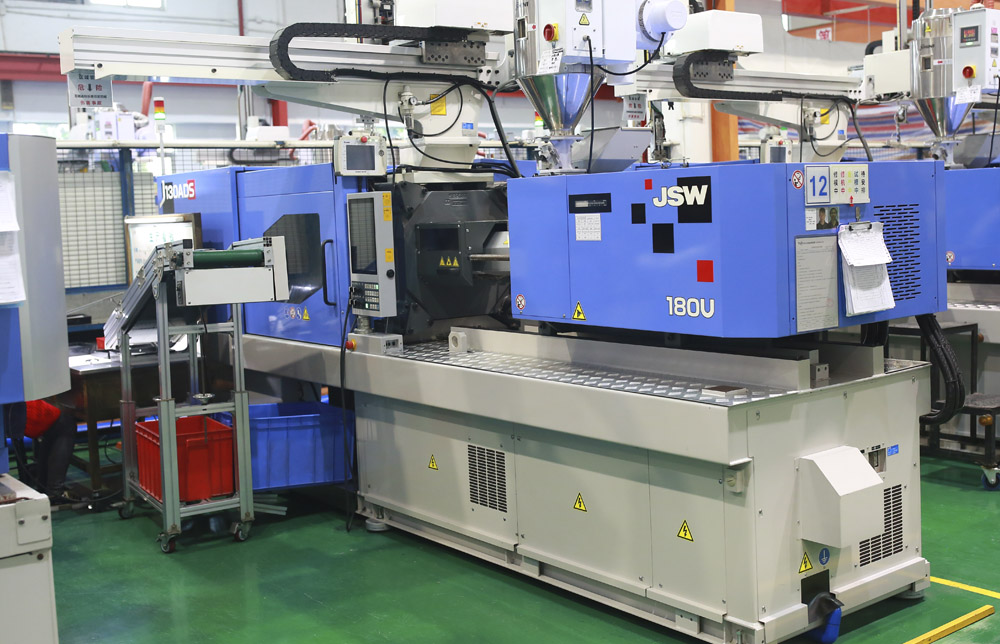

Injection molding machine J180ADC-180U

Innovative high-rigidity clamping unit, clamping control
1. Mould clamping device
2. Uniformity of clamping force "flat plate"
3. Enlarged installable die thickness and width
4. Added mold protection function

5. Clamping force feedback control (option)

Original high-precision injection/recovery control and flexibility
1. JSW's original high-precision volume control
2. Abundant injection units
3. Various holding pressure settings
4. Changes in screws
Automated manufacturing

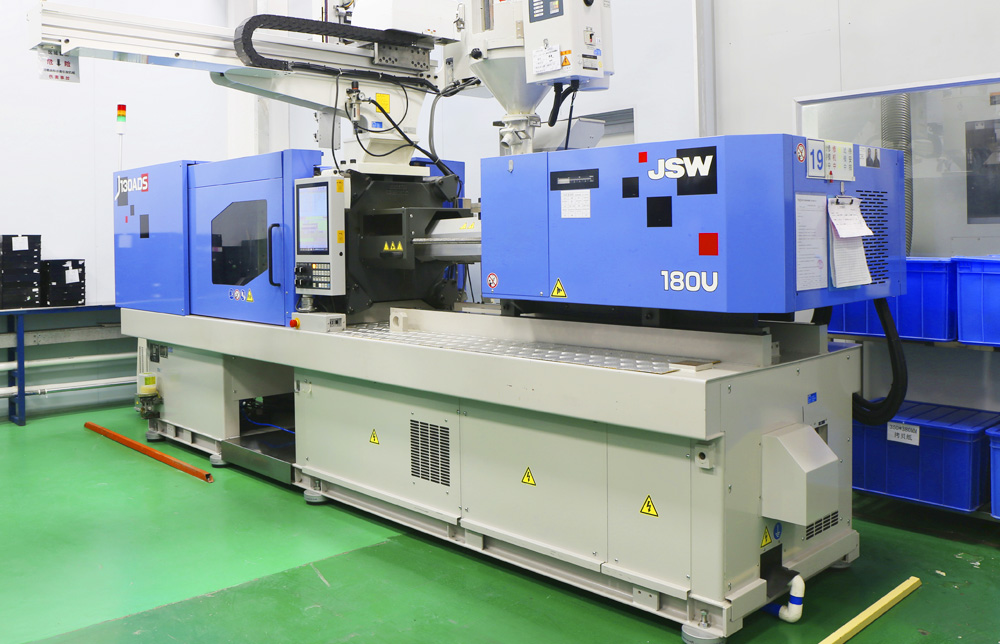

Injection molding machine J130ADS-180U

1. Soft injection
Moderates the pattern of sharp changes in the cavity pressure during the holding process: This ensures the surface accuracy of the lens.
2. Low-speed injection control
Injection speed control in the ultra-low speed range is essential to prevent jetting or flow marks: our models offer excellent injection speed stability in the range below 1.5 mm/s.
3. IWCS (Injection Weight and Cushion Stability)
The IWCS controls the density of the molten resin that is stably stored at the end of the screw after the metering is completed, thereby continuously stabilizing the metering density. This JSW exclusive control technology reduces any changes in product weight and seat position. (Patent No. 3529771)
4. Synchronous heating control
5. Sack-back delay control
Sack-back is performed immediately before the release process to cancel threading.

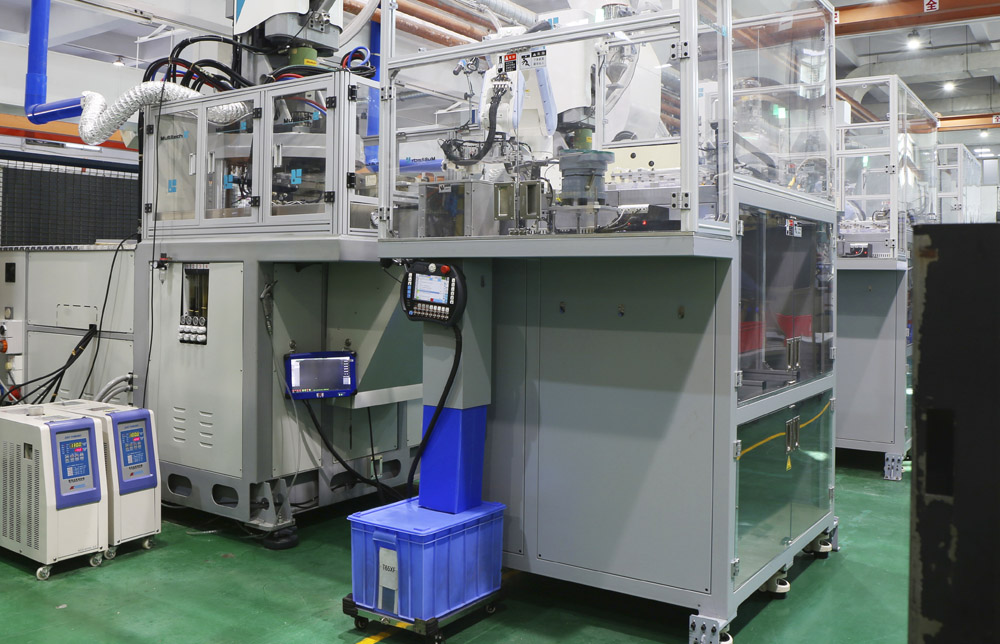

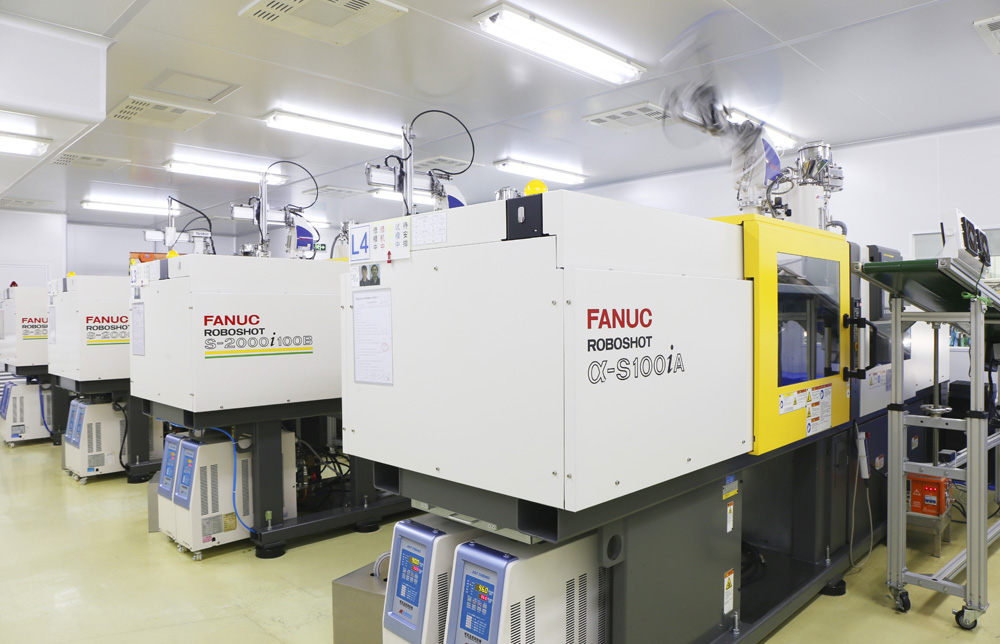

Dust-free workshop injection molding machine S-2000i100A

High formability
1. FANUC standard CNC for excellent molding stability
2. High rigidity and low friction mechanical structure for precision molding
3. Servo additional axis control for high value-added molding

high operating rate
1. FANUC standard servo system to achieve high reliability and energy-saving production
2. High-precision AI protection function to shorten downtime
3. ROBOSHOT-LINK+ to manage production and quality information

high availability
1. Fully enclosed cover with the best of both worlds in safety and operability
2. To meet the safety requirements of the internationalization of the molding factory
3. Robot system with excellent interactive operability

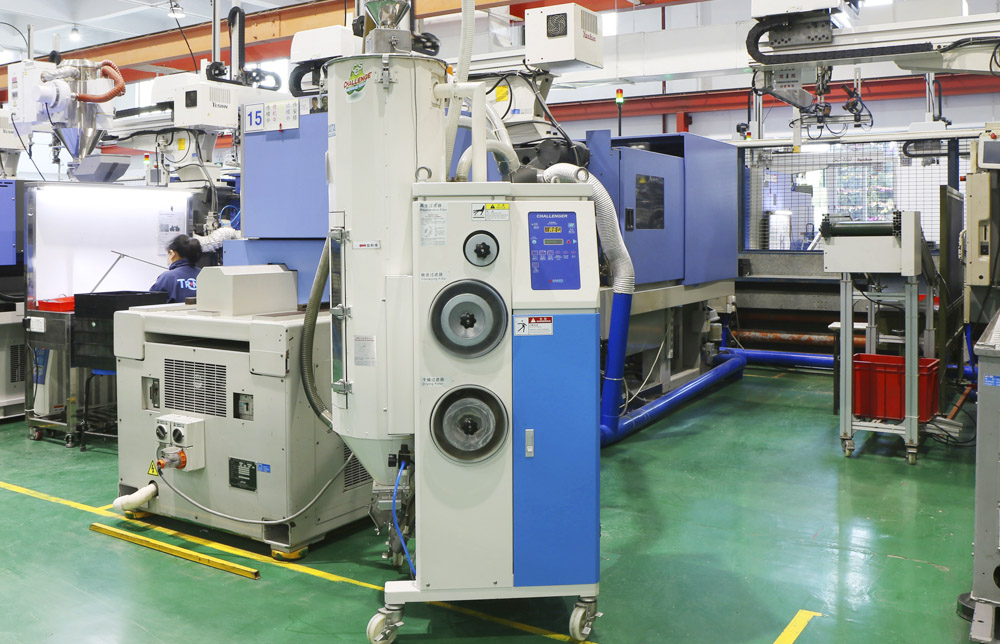

Dehumidification Dryer

1. With ordinary cooling water, the dew point can reach -32 degrees to -40 degrees at no load, and ideally with the chiller, it can even reach the dew point below -40 degrees.
2. Dehumidification and regeneration work in a continuous cycle to ensure that the dew point temperature is stable in a straight line.
3. The honeycomb runner with ceramic fiber as the base material has good dehumidification effect.
4. Optional PLC programmable touch screen, more complete functions.
5. Do not produce pollution to ensure the quality of plastics.
6. The runner can withstand high temperature of 1000 degrees to prevent fire, acid and alkali resistance, and the average life span is more than 3-8 years.
7. The regeneration temperature is 180 degrees, which saves 2/3 time and 30-40% energy than the traditional hot air dryer.
